NextMeters M&E Bronze PD20-NR (3/4″x3/4″)

M&E

NextMeters M&E Bronze PD20-NR (3/4″x3/4″)

Name: NextMeters M&E Bronze PD20-NR (3/4″x3/4″)
Brand: M&E
SKU: SUB-NextMeters M&E Bronze PD20-NR (3/4″x3/4″)
Price: 252.08 USD
Availability: InStock

In stock - 100 items available

SKU: SUB-NextMeters M&E Bronze PD20-NR (3/4″x3/4″)

Regular price $252.08

Product variants

Quantity

This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

The NextMeters M&E Bronze PD20-NR (3/4″x3/4″) encoder meter is the perfect choice for measurement of potable cold water in residential, commercial, and industrial services. Its powerful and intuitive mobile application allows for cost-efficient operations and easy data collection. The PD20 is approved by NTEP for horizontal and vertical installations in cold water.

The corrosion-resistant, lead-free main case is hinged on the outlet side for ease of use and is rated for common municipal applications. Enjoy the ultimate combination of convenience and efficiency with the NextMeters M&E Bronze PD20-NR (3/4″x3/4″).

Register

• All M&E -NR meters ship configured to USG

» Field configurable to: USG, CF, Liters & Cubic Meters

• Encoded output

» All M&E -NR meters ship configured to Sensus encoded protocol

» All M&E -NR meters are field configurable to: Neptune, AMCO & Sensus protocols

• Pulse output

» Field configurable to pulse output

• Wireless meter reading

» Walk by, drive by and 3rd party capable

• Configurable using iOS and Android.

Lead-Free Main Case

• Made from lead-free bronze.

• NSF/ANSI/CAN 61 and 372.

• Includes 1/4”- 20 threaded boss for AMR/AMI pit installations.

• Electrical grounding continuity.

• 3/4” x 3/4” x 7.5” meter available with 1.5”extension.

Measuring Chamber

• Oscillating piston measuring chamber.

• Widest effective flow range for maximum revenue.

• Polymer measuring chamber materials maximize long-term accuracy

Water Meter

• The PD20 is approved by NTEP for horizontal and vertical installations in cold water.

• The PD water meter consists of three major assemblies: a register, a lead-free bronze main case, and a positive displacement (oscillating piston) measuring chamber.

• For reading convenience, the register is mounted hinged on the outlet side of the meter. The lead-free bronze main case is corrosion resistant and is rated for typical municipal applications.

• The positive displacement chamber design of the measuring element ensures maximum accuracy in any installation orientation. The measuring unit is optimized for minimal wear.

• All M&E meters meet or exceed AWWA C700 standards.

• M&E provides a limited warranty. See warranty statement for details.

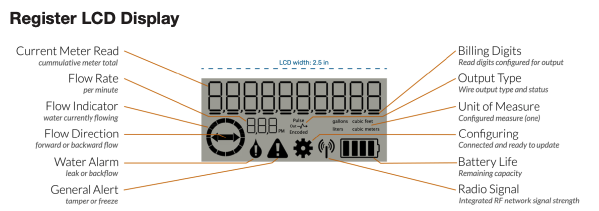

Register

• Incorporates Accuracy Data Leveling Technology
as presented in: https://doi.org/10.1002/opfl.1757

• Built-in BLE communication for configuration and reading.

• Anti-obsolescence: 10-year estimated battery life, under normal operating conditions. Replaceable with CR18505 lithium battery.

• Operating Environment:

» IP68 for submersed applications.

» Temperature min -4º F

» Temperature max 120º F

• Exceeds IP68 requirements.

• Field replaceable, sealed battery.

• Complies with Part 15 of the FCC rules

For more information, download the specification sheet.

Click here to download the spec sheet.
