Itron Gallus G4 Gas Meter 3/4” NPT Threads

Name: Itron Gallus G4 Gas Meter 3/4” NPT Threads
Brand: MTW
SKU: SUB-ITRON GALLUS G4
Price: 101.2 USD
Availability: InStock

In stock - 100 items available

SKU: SUB-ITRON GALLUS G4

Regular price $101.20

Product variants

Quantity

This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

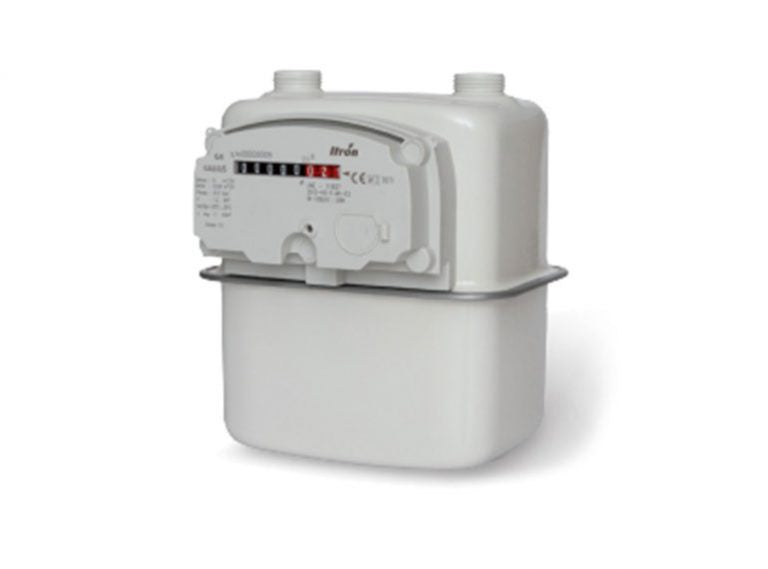

The Itron Gallus G4 Gas Meter is designed to deliver precise and reliable measurement for medium flow rates. With a positive displacement diaphragm, 3/4" NPT threads, and class-leading MID and EN1359 compliance, the Gallus represents the highest standard of quality and sophistication in gas meters.

Its streamlined, compact design is the epitome of elegance in gas measurement technology.

• Operational efficiency with remote meter
reading

• Manage usage and resources with timely,
accurate data

• Compact design fits a variety of installation
environments

• Reliable and maintenance-free meter design

• Standards compliant across multiple ranges

• Gas Type --Natural Gas, LPG and all non-corrosive gases

• Temperature Range --Operating: -25°C to +55°C Storage: -30°C to +70°C

• Accuracy-- Class 1.5

• Totalizer-- IP54 (IP67 on request)

• Cyclic Volume-- 1.2 dm3
Maximum Operating Pressure-- Steel 0.5 bar (0.1 bar HTL version) Aluminium 1.5 bar

• Measuring Range-- Qmin 0.04 m2/h Qmax 6 m2/h

• Casing Material-- Sheet steel Aluminium alloy

• Approval-- MID (04/22/EC) module H1

• Connections-- Single or 2 pipe connections Different connection threads are available (ISO 228-1 & BS746 standards, national). Special threads on request

• Colour-- Grey white RAL9002

For more information, download the specification sheet.

Click here to download the spec sheet.
