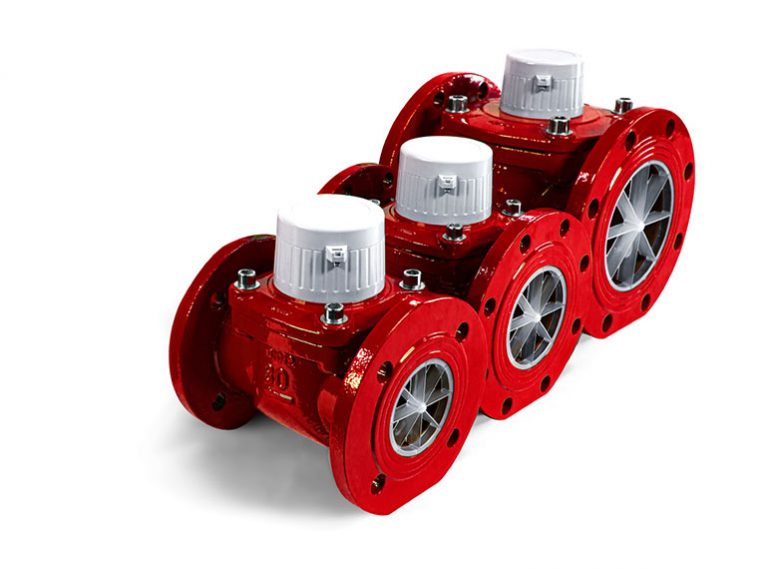

M&E 6" Turbine LF CI Hot 1 Pulse/100 USG

Name: M&E 6" Turbine LF CI Hot 1 Pulse/100 USG
Brand: M&E
SKU: SUB-M&E 6" Turbine Hot
Price: 2689.75 USD
Availability: InStock

In stock - 100 items available

SKU: SUB-M&E 6" Turbine Hot

Regular price $2,689.75

Product variants

Quantity

This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

The M&E 6" Turbine LF CI Hot 1 Pulse/100 USG is engineered for the highest level of accuracy and durability. Featuring a cast iron main casing with epoxy coating, this unit is designed to measure potable hot water (Rated up to 194°F) in commercial and industrial settings, perfect for high volume applications in tight spaces.

Its IP68-rated combined gear and register unit yields precise readings that can be relied upon by governing agencies. A Z-plate strainer is recommended for the utmost protection and longevity of the unit. Warranty void if turbine is used without ASME/ANSI 150 strainer

• Meets or exceeds AWWA C701 Class II accuracy

• Remote ready, includes pit pulse

• Rated to 194°F and 200 psi

• Large numbers for easy reading

• Glass lens resists scratching

• Epoxy coated Cast Iron casing meets NSF/ANSI 372 standards

• 1-year new meter accuracy warranty/ 5-year standard warranty for casing, register, and accuracy (AWWA C701)

• 1 pulse = 100 USG or 10 CF (std)

• It is highly recommended that a Z-plate strainer be used upstream of the meter for protection to the turbine impeller and to reduce effects of turbulence. Industry Standards recommend horizontal installation with 10 pipe diameters upstream of the meter (if a strainer is not used) and 5 pipe diameters downstream.

• Warranty void if turbine is used without ASME/ANSI 150 strainer.

For more information, download the specification sheet.

Click here to download the spec sheet.
