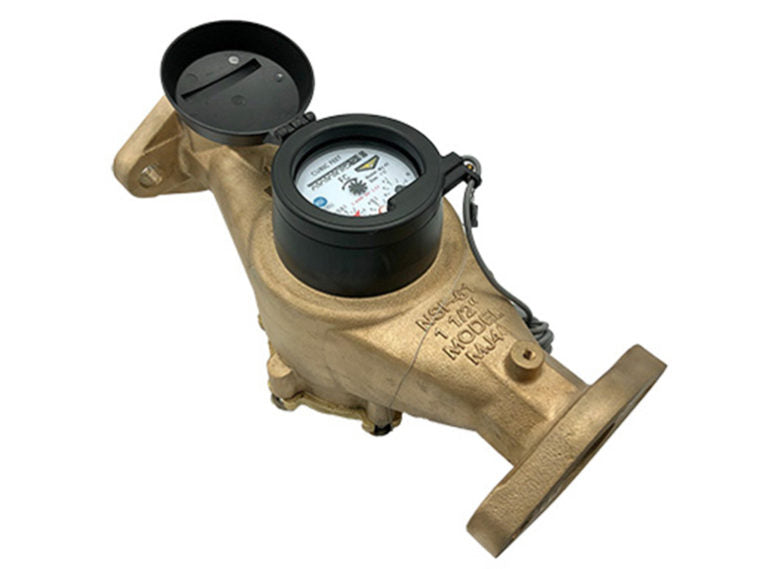

M&E MJ 1.5" Water Meter Flanged LF Bronze 1 Pulse/1 CF

Name: M&E MJ 1.5" Water Meter Flanged LF Bronze 1 Pulse/1 CF
Brand: M&E
SKU: SUB-M&E MJ 1.5” FLANGED CF - 1
Price: 598.72 USD
Availability: InStock

In stock - 100 items available

SKU: SUB-M&E MJ 1.5” FLANGED CF - 1

Regular price $598.72

Product variants

Quantity

This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

The M&E MJ 1.5" Flanged LF Bronze 1 Pulse/1 CF is the perfect choice for accurately measuring potable cold water in residential, commercial, and industrial services. Crafted with lead-free bronze that meets NSF/ANSI/CAN 61 and 372 standards, this state-of-the-art meter features both a straight odometer for visual readings of billable units and a group of high-precision pointers for precise testing.

Its combination gear and register unit is fully sealed and pit rated to IP68 (NEMA 6) for optimal protection, while its measuring chamber is composed of engineered plastics that meet NSF standards. Experience pinpoint precision with this exclusive meter.

Register

• All M&E meters come standard with pulse output

• Magnetic drive, low-torque registration ensures accuracy

• Impact-resistant glass register resists scratching

• High-resolution, low-flow leak detection

• Bayonet-style register mount allows in-line serviceability

• Tamperproof seal pin deters theft

• Date of manufacture, size, and model stamped on dial face

Lead Free Main Case

• Made from lead free bronze

• NSF/ANSI/CAN 61 and 372 certified

• Includes 1/4”- 20 threaded boss for AMR/AMI pit installations

• Electrical grounding continuity

• Test port on flanged meters

Measuring Chamber

• Velocity-type (multi-jet) measuring chamber

• Widest effective flow range for maximum revenue

• Polymer measuring chamber materials maximize long-term accuracy

• The MJ water meter consists of three major assemblies: a register, a lead free bronze main case, and a multi-jet measuring chamber.

• The MJ meter is available with a variety of register types. For reading convenience, the register is mounted hinged on the outlet side of the meter. The lead-free bronze main case is corrosion resistant and is rated for typical municipal applications.

• The multi-jet measuring chamber design of the measuring element ensures quiet operation with low wear characteristics.

• All M&E meters meet or exceed AWWA C708 standards.

• M&E provides a limited warranty with respect to its MJ water meters for performance, materials, and workmanship.

For more information, download the specification sheet.

Click here to download the spec sheet.
