M&E MJ 5/8" x 3/4" LF Bronze 1 Pulse/0.1 CF

Name: M&E MJ 5/8" x 3/4" LF Bronze 1 Pulse/0.1 CF
Brand: M&E
SKU: SUB-M&E MJ 5/8” x 3/4” CF - 0.1
Price: 158.27 USD
Availability: InStock

In stock - 100 items available

SKU: SUB-M&E MJ 5/8” x 3/4” CF - 0.1

Regular price $158.27

Product variants

Quantity

This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

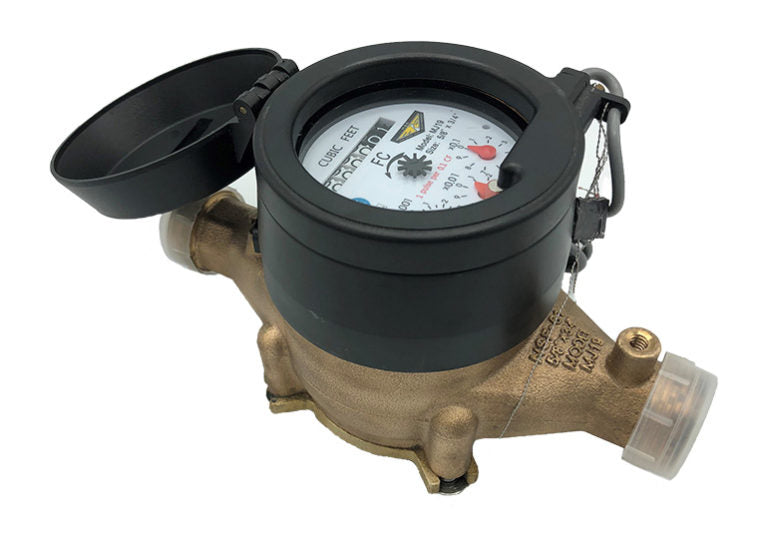

Engineered from lead-free bronze, the M&E MJ 5/8" x 3/4" LF Bronze 1 Pulse/0.1 CF ensures accurate, reliable measurement of potable cold water, with a robust serial number engraved on the casing and a fully sealed register and pulse unit to guarantee readings that comply with NSF/ANSI/CAN 61 and 372.

The oscillating piston measuring chamber is crafted from NSF-certified engineered plastics, ensuring quality and precision even in the most demanding residential, commercial, and industrial services.

Register

• All M&E meters come standard with pulse output

• All M&E meters are available in either gallon or cubic feet registration

• Magnetic drive, low-torque registration ensures accuracy

• Impact-resistant glass register resists scratching

• High-resolution, low-flow leak detection

• Bayonet-style register mount allows in-line serviceability

• Tamperproof seal pin deters theft

• Date of manufacture, size, and model stamped on dial face

Lead Free Main Case

• Made from lead free bronze

• NSF/ANSI/CAN 61 and 372 certified

• Includes 1/4”- 20 threaded boss for AMR/AMI pit installations

• Electrical grounding continuity

• 3/4” x 7.5” Meter available with 1.5” extension

Measuring Chamber

• Velocity-type (multi-jet) measuring chamber

• Widest effective flow range for maximum revenue

• Polymer measuring chamber materials maximize long-term accuracy

• The MJ water meter consists of three major assemblies: a register, a lead free bronze main case, and a multi-jet measuring chamber.

• The MJ meter is available with a variety of register types. For reading convenience, the register is mounted hinged on the outlet side of the meter. The lead-free bronze main case is corrosion resistant and is rated for typical municipal applications.

• The multi-jet measuring chamber design of the measuring element ensures quiet operation with low wear characteristics.

• All M&E meters meet or exceed AWWA C708 standards.

• M&E provides a limited warranty with respect to its MJ water meters for performance, materials, and workmanship.

For more information, download the specification sheet.

Click here to download the spec sheet.
