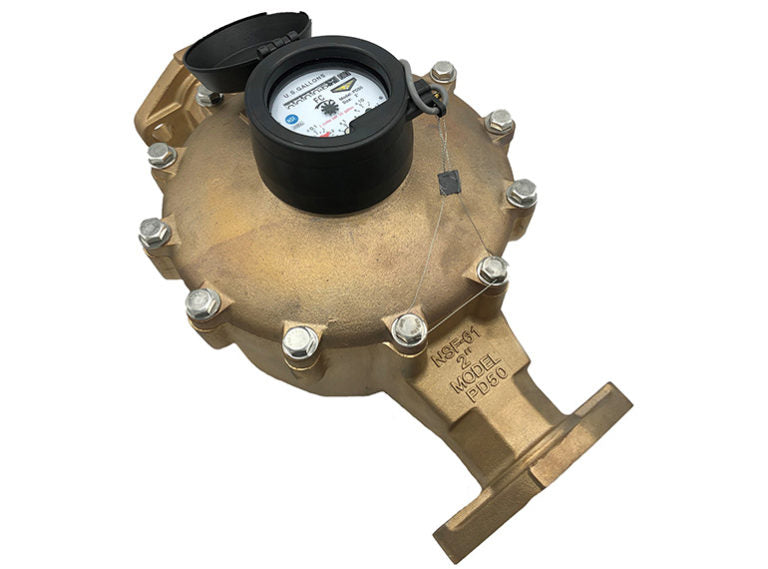

M&E PD 2" Flanged LF Bronze 1 Pulse/1 CF

Name: M&E PD 2" Flanged LF Bronze 1 Pulse/1 CF
Brand: M&E
SKU: SUB-M&E PD 2” FLANGED CF - 1
Price: 897.87 USD
Availability: InStock

In stock - 100 items available

SKU: SUB-M&E PD 2” FLANGED CF - 1

Regular price $897.87

Product variants

Quantity

This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

The M&E PD 2" Flanged LF Bronze 1 Pulse/1 CF is perfect for accurate, reliable measure of potable cold water in residential, commercial, and industrial settings.

Featuring lead free bronze main casing that meets NSF/ANSI/CAN 61 and 372, its sealed gear and combined register unit provide precise visual readings with a straight odometer, and groups of high-precision pointers for testing. Its NSF-certified measuring chamber is a unique oscillating piston design. Get precision and reliability with this exclusive product.

Register

• All M&E meters come standard with pulse output

• Magnetic drive, low-torque registration ensures accuracy

• Impact-resistant glass register resists scratching

• High-resolution, low-flow leak detection

• Bayonet-style register mount allows in-line serviceability

• Tamperproof seal pin deters theft

• Date of manufacture, size, and model stamped on dial face

Lead Free Main Case

• Made from lead free bronze

• NSF/ANSI/CAN 61 and 372 certified

• Includes 1/4”- 20 threaded boss for AMR/AMI pit installations

• Electrical grounding continuity

Measuring Chamber

• Oscillating piston measuring chamber

• Widest effective flow range for maximum revenue

• Polymer measuring chamber materials maximize long-term accuracy

• The PD water meter consists of three major assemblies: a register, a lead free bronze main case, and a positive displacement (oscillating piston) measuring chamber.

• The PD meter is available with a variety of register types. For reading convenience, the register is mounted hinged on the outlet side of the meter. The lead-free bronze main case is corrosion resistant and is rated for typical municipal applications.

• The positive displacement chamber design of the measuring element ensures maximum accuracy in any installation orientation. The measuring unit is optimized for minimal wear.

• All M&E meters meet or exceed AWWA C700 standards.

• M&E provides a limited warranty with respect to its PD water meters for performance, materials, and workmanship.

For more information, download the specification sheet.

Click here to download the spec sheet.
