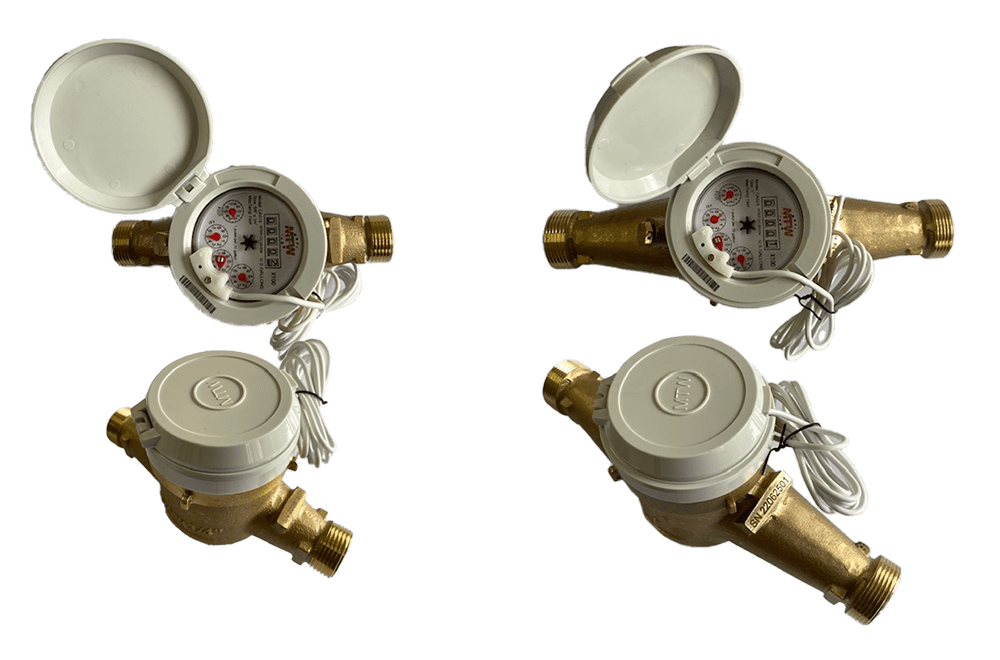

MTW CAS 19, 5/8" x 3/4" 1 Pulse/1 CF Hot Water Meter

Name: MTW CAS 19, 5/8" x 3/4" 1 Pulse/1 CF Hot Water Meter
Brand: MTW
SKU: SUB-MTW CAS 5/8" x 3/4" CF Hot
Price: 184.0 USD
Availability: InStock

In stock - 100 items available

SKU: SUB-MTW CAS 5/8" x 3/4" CF Hot

Regular price $184.00

Product variants

Quantity

This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

The MTW CAS 19, 5/8" x 3/4" 1 Pulse/1 CF Hot Water Meter is perfect for residential, commercial, and industrial services that require accurate measurements of hot water. Crafted from NSF/ANSI 372 certified brass, this durable device is designed exclusively for one-directional flow, while the pulse output register head ensures superior accuracy for a remote read out or AMR system.

Installation is approved by the NTEP and is simple to do in the horizontal orientation. Enjoy the increased precision of this multi-jet hot water meter.

• All MTW CAS meters come standard with pulse output.

• Pulse Reed Switch rating: DC 24V max and 100mA max.

• Magnetic drive, low-torque registration ensures accuracy.

• Impact-resistant polycarbonate register lens resists scratching.

• High-resolution, low-flow leak detection.

• The MJ CAS water meters consist of an all-inclusive brass body with NPSM threads and sealed/tamper proof calibration ports.

• The pulser is accessible and easily replaceable from the top of the meter.

• The multi-jet measuring chamber design ensures quiet operation with low wear characteristics.

• NSF/ANSI 372 certified.

• 1-year new meter accuracy warranty/ 5-year standard warranty for casing, register, and accuracy.

For more information, download the specification sheet.

Click here to download the spec sheet.
