Neptune 1.5” T-10 FLG w/ ProCoder USG

Name: Neptune 1.5” T-10 FLG w/ ProCoder USG
Brand: Neptune
SKU: SUB-NEPT 1.5” ProCoder
Price: 1089.21 USD
Availability: InStock

In stock - 10 items available

SKU: SUB-NEPT 1.5” ProCoder

Regular price $1,089.21

Product variants

Quantity

This item is a recurring or deferred purchase. By continuing, I agree to the cancellation policy and authorize you to charge my payment method at the prices, frequency and dates listed on this page until my order is fulfilled or I cancel, if permitted.

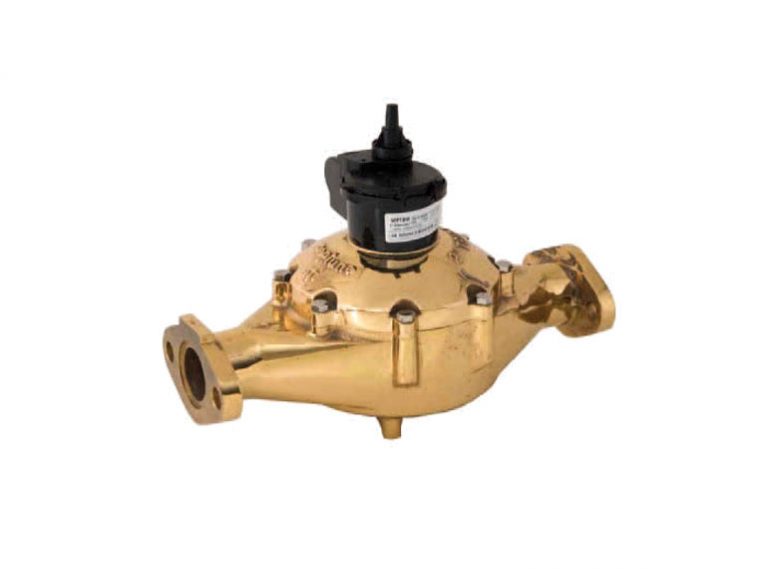

The Neptune 1.5" T-10 w/ ProCoder USG Flanged water meter for unparalleled accuracy and dependability in your utility revenue. The nutating disc and positive displacement principle meet or exceed the latest AWWA C700 Standard, while the tamperproof seal pin deters theft.

Every unit can be installed vertically or horizontally and come standard with an encoder register head. Enjoy maximum precision and security with Neptune.

Register

•Magnetic drive, low torque registration ensures accuracy

•Impact-resistant register

•High resolution, low flow leak detection

•Bayonet style register mount allows in-line serviceability

•Tamperproof seal pin deters
theft

•Date of manufacture, size, and model stamped on dial face

Lead Free Maincase

•Made from lead free high copper alloy

•NSF/ANSI 61 Certified, Annex G and Annex F compliant

•Lifetime guarantee

•Resists internal pressure stresses and external damage

•Handles in-line piping variations and stresses

•Lead free high copper alloy provides residual value vs. plastic

•Electrical grounding continuity

Nutating Disc Measuring Chamber

•Positive displacement

•Widest effective flow range for maximum revenue

•Proprietary polymer materials maximize long term accuracy

•Floating chamber design is unaffected by meter position or in- line piping stresses

•Certification: NSF/ANSI 61, Annex G and Annex F

• Application: cold water measurement of flow in one direction

• Maximum operating water pressure: 150 psi (1034 kPa)

• Maximum operating water temperature: 80°F

• Measuring chamber: nutating disc technology design made from proprietary synthetic polymer

For more information, download the specification sheet.

Click here to download the spec sheet for the meter body.

Click here to download the spec sheet for the register head.
