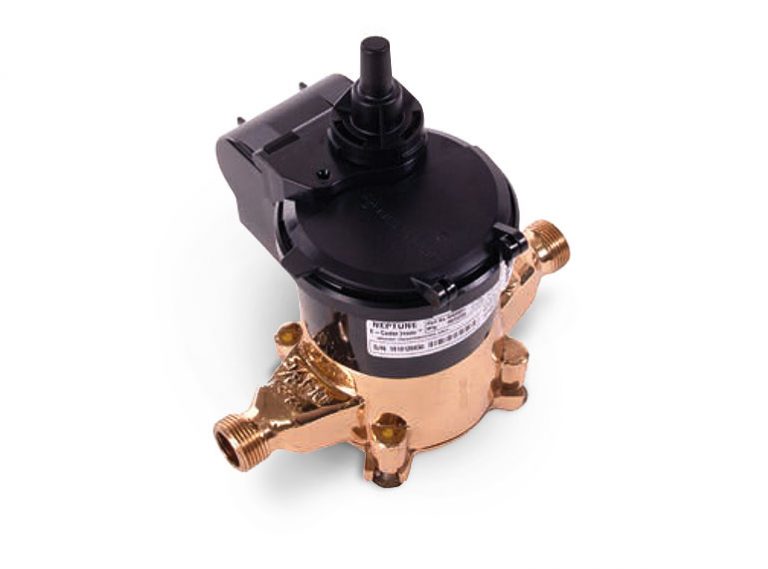

Register

• Magnetic drive, low torque registration ensures accuracy

• Impact-resistant register

• High resolution, low flow leak detection

• Bayonet style register mount allows in-line serviceability

• Tamperproof seal pin deters theft

• Date of manufacture, size, and model stamped
on dial face

Lead Free Maincase

• Made from lead free high copper alloy

• NSF/ANSI 61 certified, Annex F and Annex G compliant

• Lifetime guarantee

• Resists internal pressure stresses and external damage

• Handles in-line piping variations and stresses

• Lead free high copper alloy provides residual
value vs. plastic or composite

• Electrical grounding continuity

Nutating Disc Measuring Chamber

• Positive displacement

• Widest effective flow range for maximum revenue

• Proprietary polymer materials maximize long-term accuracy

• Floating chamber design is unaffected by meter position or in-line piping stresses

• Certification: NSF/ANSI 61 certified, Annex F
and Annex G compliant

• Application: Cold water measurement
of flow in one direction in residential
service applications

• Maximum operating water pressure:
150 psi (1034 kPa)

• Maximum operating water temperature: 80°F

• Measuring chamber: Nutating disc
technology design made from proprietary
synthetic polymer
